Product Introduction
Engineered for demanding outdoor and indoor events, this IP65-rated LED bar delivers powerful, versatile illumination in any weather. Featuring 18×30W 6in1 RGBWAUV LEDs (50,000h lifespan) with a total output of 550W, it produces vibrant colors, true whites, and striking UV effects. The electronic frost filter offers three beam angles (13°/31°/80°), seamlessly switching from sharp aerial beams to smooth washes. Pixel-level control and built-in color/pattern macros enable dynamic eye-candy effects, while 0–100% linear dimming and 1–20Hz strobe provide precise creative control.
Usage Scenarios
Concerts & Festivals: Create pixel-mapped chases and aerial beam effects on stage trusses.
Architectural Uplighting: Wash building facades, bridges, or columns with even color mixing.
TV Studios & Theaters: Use silent, flicker-free operation for key light or backdrop washes.
Theme Parks & Installations: Withstand rain and dust thanks to IP65 waterproofing and rugged aluminum housing.
Mobile & Rental Production: Fast-lock omega brackets, splicing pins, and flight-case packaging (gross weight 108kg/6 units) allow rapid ground stacking, vertical hanging, or horizontal splicing.
Whether you need a weatherproof wash light for outdoor festivals or a pixel-mapped effect light for touring stages, this fixture combines durability, output, and creative flexibility in a slim 1-meter form factor.

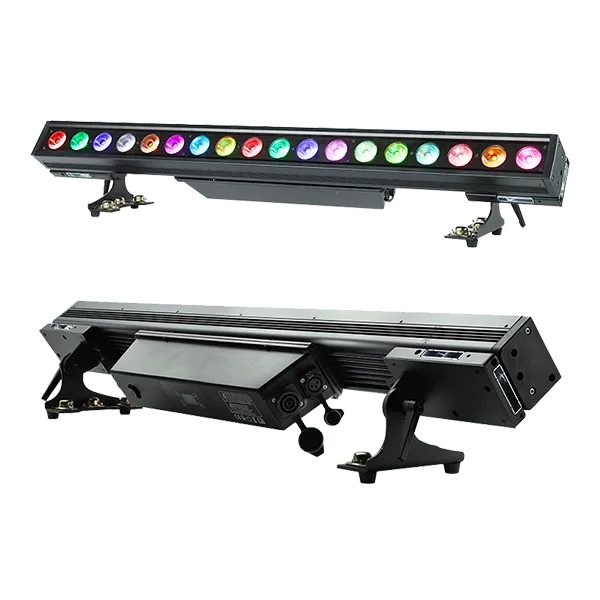

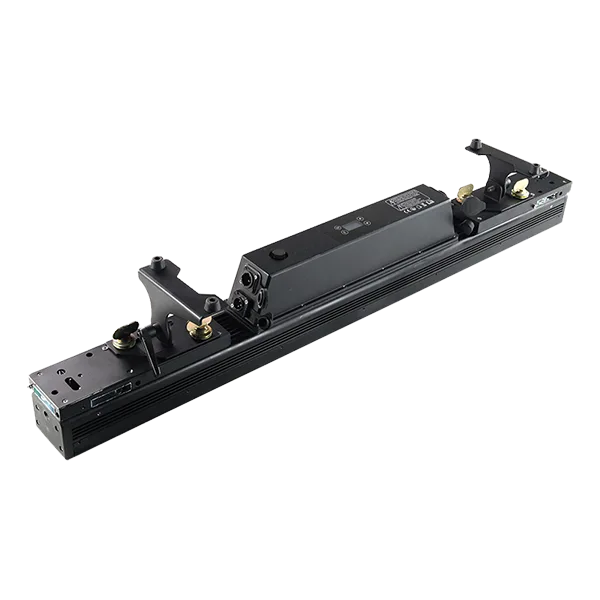

Model Name: PRC-PBL1830IP
Product Name: Waterproof LED Pixel Bar Light
Technical Specifications
● Power Supply: AC100–240V, 50/60Hz
● Maximum Power Consumption: 550W
● Light Source: 18 × 30W RGBWAUV 6‑in‑1 LEDs (RGBW 4‑in‑1 or RGBWA 5‑in‑1 optional)
● LED Lifespan: 50,000 hours
● Beam Angle: 13° / 31° / 80° (with electronic frost filter)
● Dimmer: 0–100% linear dimming
● Strobe: 1–20 Hz, adjustable speed
● DMX Channel Modes:
Without frost filter: 1 / 6 / 9 / 108 / 111 CH
With electronic frost filter: 2 / 7 / 10 / 109 / 112 CH
● Control Protocols: DMX512, Auto, Master/Slave, Sound‑Active, RDM
● Power Connectors: PowerCON compatible (in/out), waterproof
● DMX Connectors: 3‑pin XLR (in/out), waterproof
● Display: OLED with 4 touch‑sensitive buttons
● Ingress Protection: IP65
● Effects: Pixel‑level LED control; built‑in colour & pattern macro effects

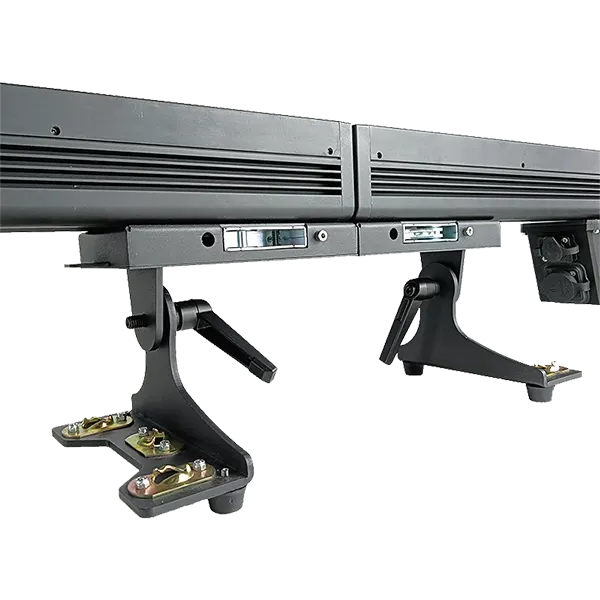

● Horizontal Installation: Omega brackets + tilt bracket fast locks (floor mount)

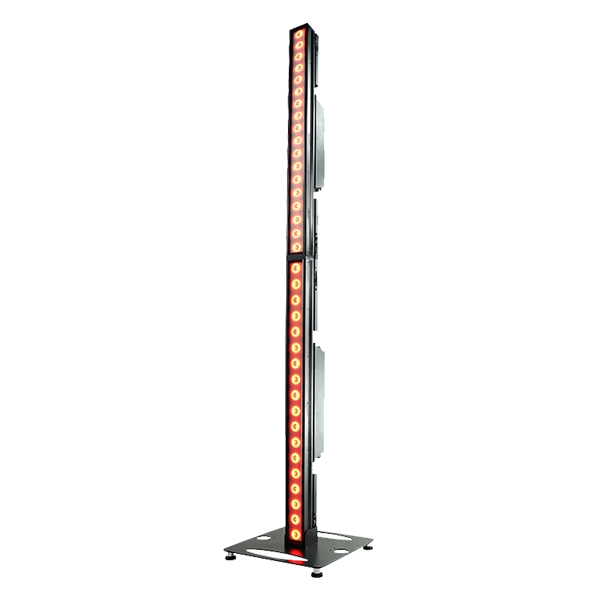

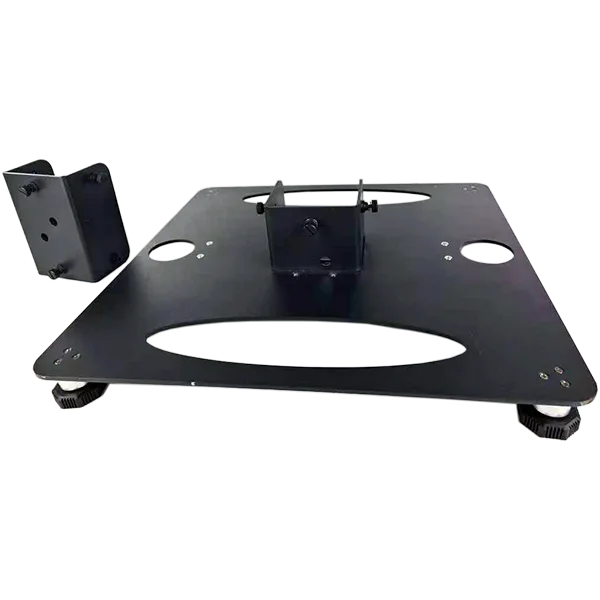

● Vertical Installation (Floor): Base plate (optional)

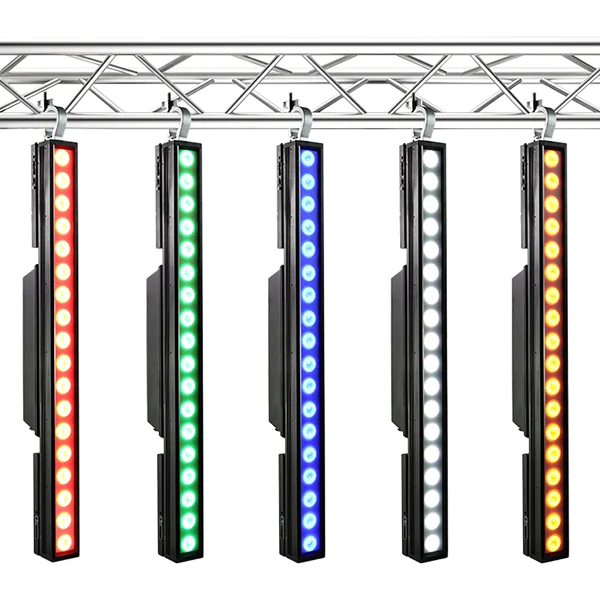

● Vertical Hanging (Upside Down): Requires vertical adapter (sold separately)

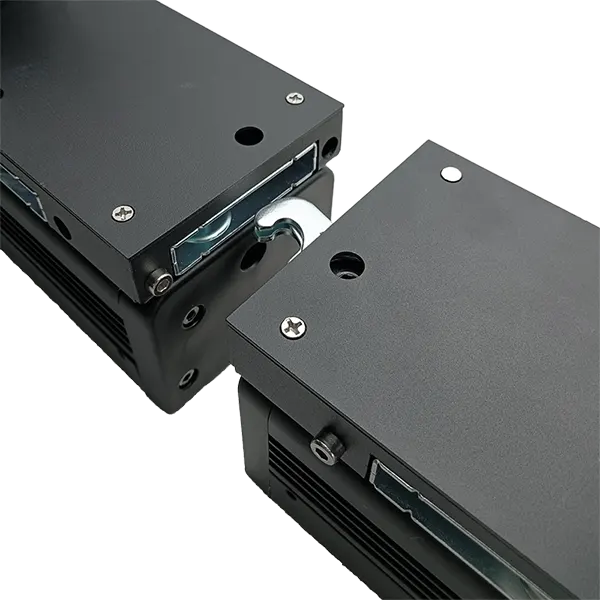

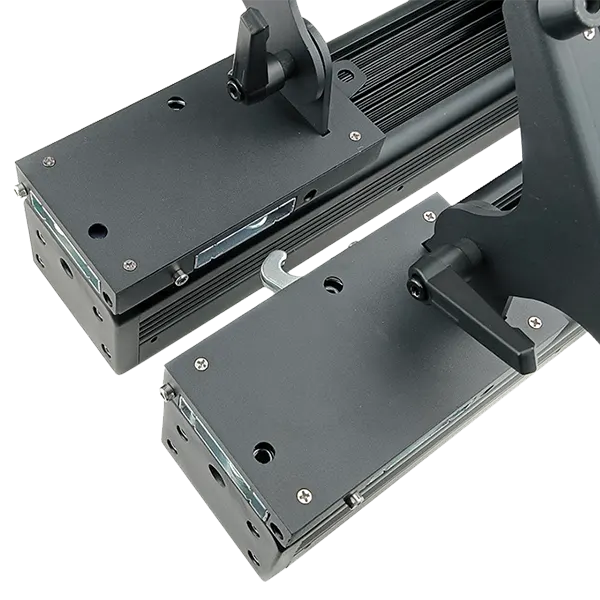

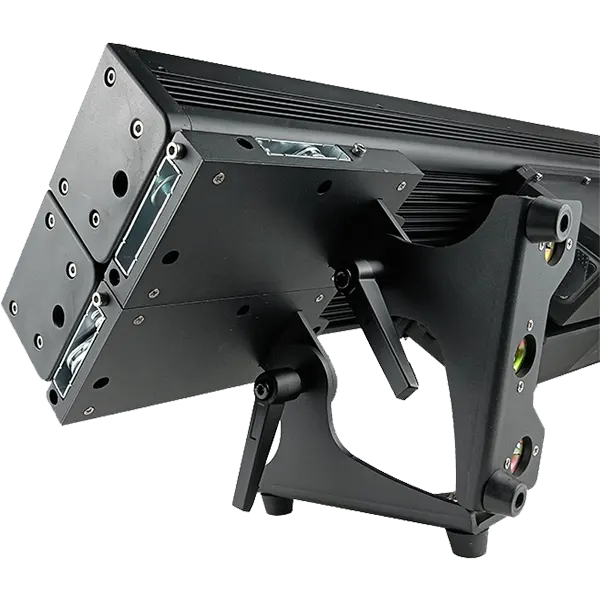

● Splicing: Structural connection with 2 quick‑release pins; supports horizontal/vertical and perimeter splicing
● Housing Material: Aluminium alloy
● Housing Colour: Black
● Optional Accessories:
① Electronic frost filter
② Floor base
③ Fixed holder
④ Hook / C‑clamp
● Fixture Dimensions (L×W×H):
Without frost filter: 1000 × 140 × 182 mm
With frost filter: 1006 × 140 × 188 mm
● Packing Dimensions (L×W×H): 1050 × 580 × 650 mm
● Net Weight:
Without frost filter: 9.5 kg
With frost filter: 10.5 kg
● Gross Weight: 108 kg (flight case, 6‑in‑1 version
