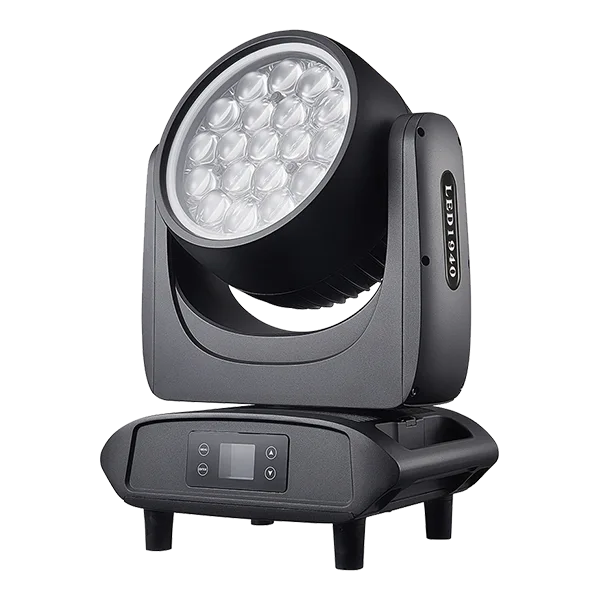

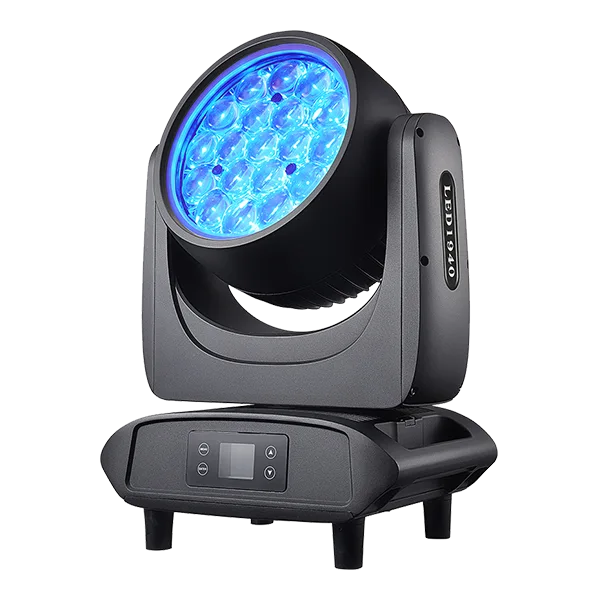

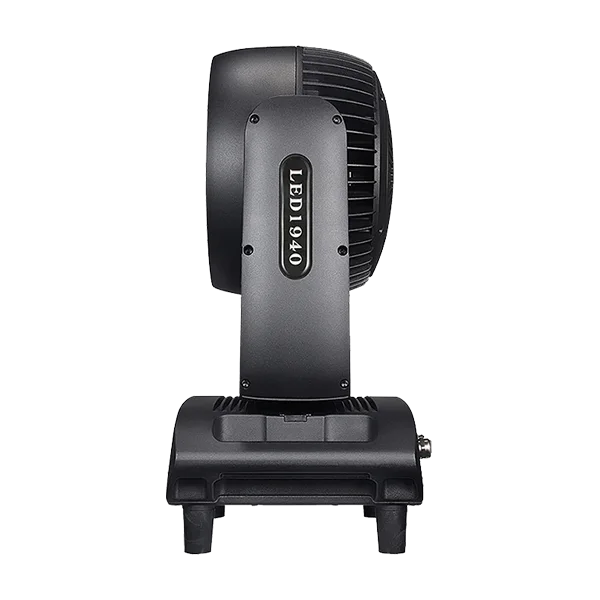

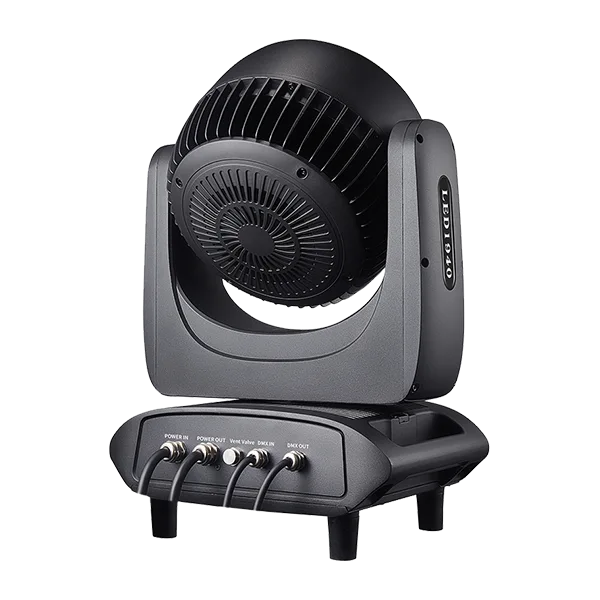

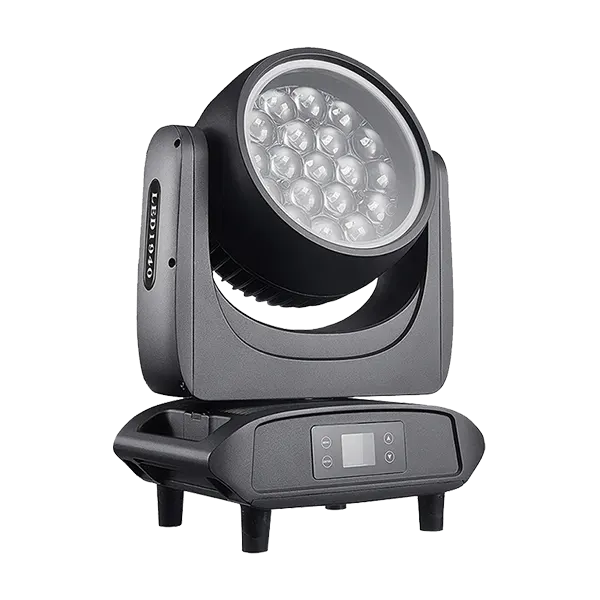

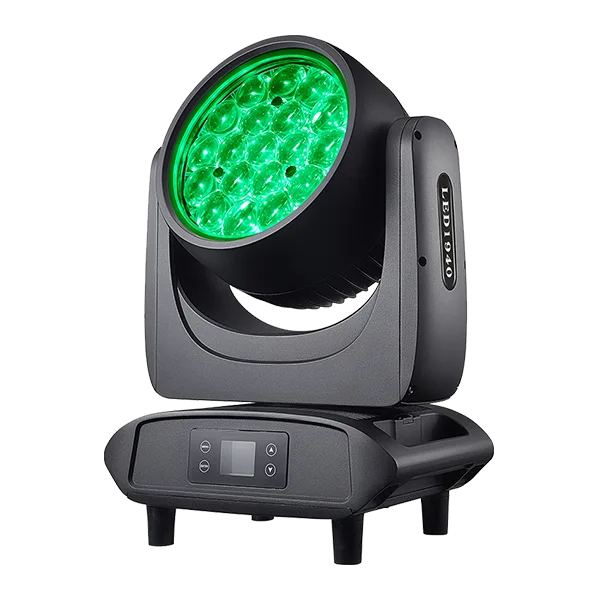

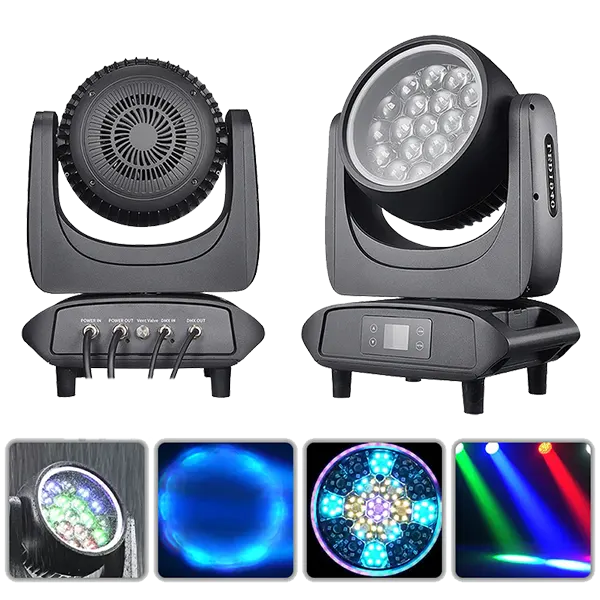

19pcs×40W RGBW 4in1 LED Waterproof Moving Head Light With Ring Wash Zoom

19pcs×40W RGBW 4in1 LED Waterproof Moving Head Light With Ring Wash Zoom

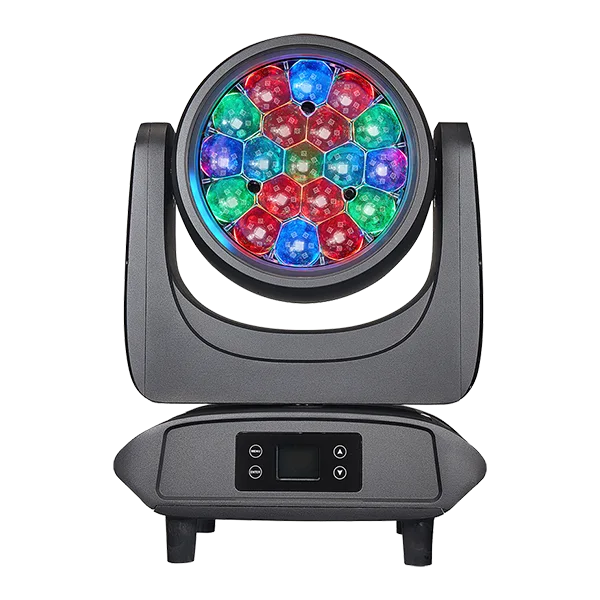

PRC-M1940IP-2

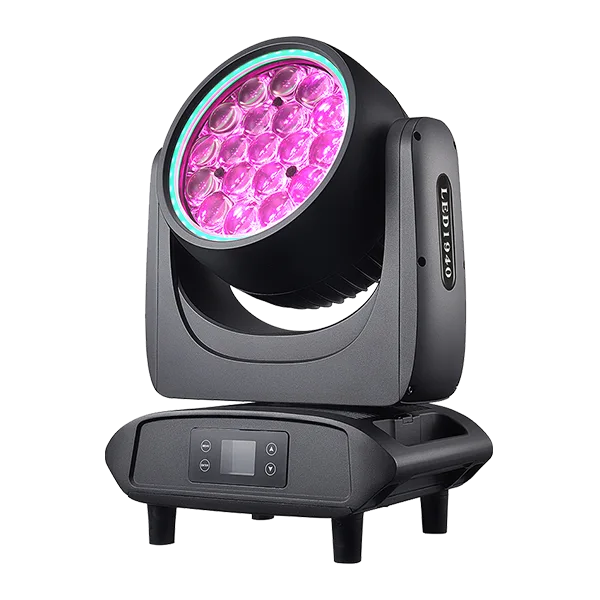

PRC-M1940IP-3

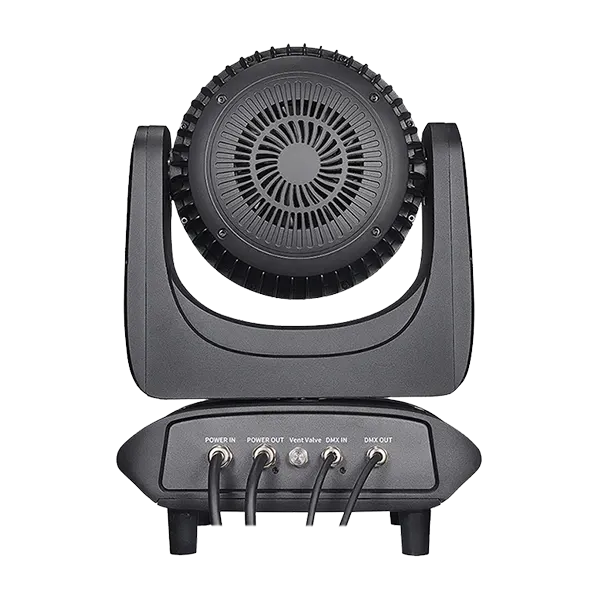

PRC-M1940IP-4

PRC-M1940IP-5
19pcs×40W RGBW 4in1 LED Waterproof Moving Head Light With Ring Wash Zoom

Model Name: PRC-M1940IP

Waterproof Moving Head Light with Ring Wash Zoom – All-in-One Versatility, Built for the Elements

Unleash limitless creativity with the PRC-M1940IP, a high-performance IP65-rated moving head light that combines powerful RGBW output, dynamic ring effects, and precision zoom in a single rugged fixture. Engineered for outdoor and indoor productions alike, it delivers stunning visuals with exceptional reliability, rain or shine.


Key Features:
✔ Versatile Lighting Engine
 – 19 high-brightness 40W RGBW LEDs, 33 RGB LEDs, and 114 auxiliary 3535 LEDs deliver rich, uniform color mixing and dynamic ring effects for endless creative possibilities.
✔ Precision Zoom Optics – Smooth 4°–60° linear motor-driven zoom with high-definition optics and a high-temperature resistant glass light guide column ensures crisp beams or wide washes with seamless transitions.
✔ Ultra-Smooth Movement – 540° PAN and 270° TILT with 16-bit precision for fluid, silent positioning.
✔ Flexible Control Options – 7 selectable DMX modes (up to 379 channels), RDM support, and multiple operating modes including master/slave, voice activation, and auto operation.
✔ Built for Any Environment – True IP65-rated die-cast aluminum housing withstands rain, sandstorms, coastal conditions, and extreme temperatures, making it ideal for demanding outdoor applications.
✔ Rich Built-In Effects – 0–100% linear dimming with macro effects, 1–25 Hz high-speed strobe with multiple preset and random modes, all easily accessible via a 1.8" TFT color touch display.


Ideal for:

Outdoor Concerts & Festivals – Deliver breathtaking visuals with powerful RGBW output and ring effects, engineered to perform in unpredictable weather conditions.

Architectural & Landmark Lighting – Achieve precise color mixing and smooth zoom for striking building facades and public spaces, day or night.

Television & Live Broadcast – Rely on quiet operation, accurate color rendering, and seamless DMX/RDM integration for professional studio environments.

Touring & Rental Productions – Lightweight yet rugged, this fixture offers the durability and versatility needed for fast-paced touring schedules and demanding rental applications.


Powerful, weatherproof, and endlessly creative—the PRC-M1940IP is the ultimate moving head light for professionals who demand performance without limits.
800W power | IP65-rated | 14 kg | DMX512 & RDM control – Elevate your production anywhere.

InquiryDownloadVideo
Share to
Detailed

Model Name: PRC-M1940IP
Product Name: Waterproof Moving Head Light With Ring Wash Zoom

Technical Specifications
Optics & Light Source

● Light Source:
19 × high-brightness 4-in-1 RGBW LEDs (40W each)
33 × RGB LEDs (5V)
114 × 3535 LEDs (auxiliary)
● Color Mixing: RGBW stepless mixing with uniform, smooth, and saturated color output
● LED Lifespan: ≥ 50,000 hours
● Beam Angle: 4° – 60°, smooth and quiet linear motor-driven zoom
● Optical System: High-definition optics with high-temperature resistant glass light guide column and fast, precise electric zoom for uniform and soft color blending

Electrical & Power
● Power Consumption: 800W
● Input Voltage: AC 100V – 240V, 50/60Hz

Control & Effects
● Control Channels: 7 selectable DMX modes — 29CH / 17CH / 32CH / 37CH / 46CH / 94CH / 379CH
● Control Protocols: DMX512, RDM
● Operating Modes: DMX512, RDM, master/slave, voice-activated, auto mode
● Display: 1.8" TFT color LCD with touch-sensitive buttons, 4 function keys, 180° screen rotation, 60-second auto-off, DMX signal indicator, bilingual menu (Chinese/English)
● Dimming: 0–100% linear dimming with 6 built-in static and dynamic macro effects, adjustable speed
● Strobe: 1 – 25 Hz high-speed LED strobe with adjustable speed; multiple preset, random, and dimming pulse strobe effects

Movement
● Pan: 540° (16-bit precision)
● Tilt: 270° (16-bit precision)

Structure & Environmental Protection
● Housing: Lightweight die-cast aluminum with high-grade finish; full plastic components for durability in extreme environments
● Ingress Protection: IP65 — withstands 360° high-pressure water jets; suitable for rain, high altitude, sandstorms, coastal, and extreme temperature conditions
● Cooling: Passive/active thermal management with overheat protection

Installation & Physical Specifications
● Maximum Daisy-Chain (220V):
Up to 4 units with 2.5 mm² cable
Up to 2 units with 2.5 mm² cable (alternate configuration)
● Fixture Dimensions: 328 × 252 × 419 mm
● Packing Dimensions: 428 × 352 × 519 mm
● Net Weight: 14 kgs
● Gross Weight: 16.5 kgs
