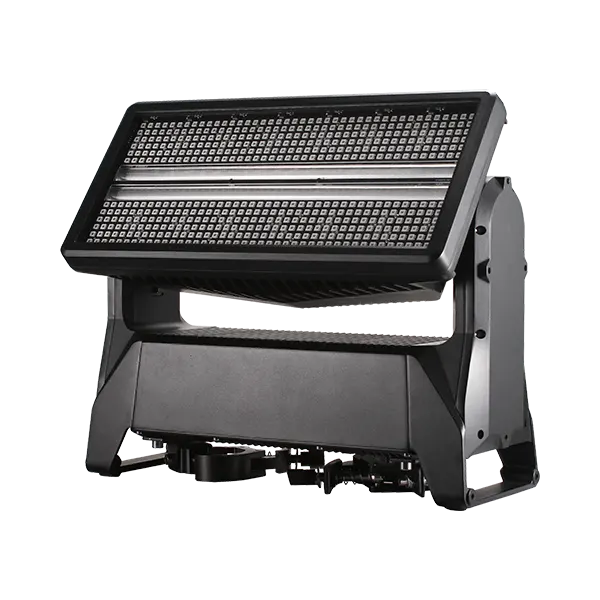

Built to perform in any weather, this IP65-rated moving head strobe delivers powerful lighting effects for both indoor and outdoor events.
Key Features
504 x 1.5W RGB LEDs + 280 x 5W white LEDs – vibrant colors and intense white strobes
Controllable segments: RGB (14 sections) + white (28 sections) for stunning pixel effects
Flexible control: DMX, RDM, ART-net, sACN, with optional wireless DMX
0-100% electronic dimming + 18 strobe modes – endless creative possibilities
IP65 weatherproof – rain or shine, it's ready to work
Rugged build with active cooling, TRUE1 power connectors, and folding bracket for easy rigging
Perfect for:
Outdoor concerts & festivals
Stadium shows & tours
TV studios & live events
Architectural installations
Powerful. Weatherproof. Reliable. Built for the pros.

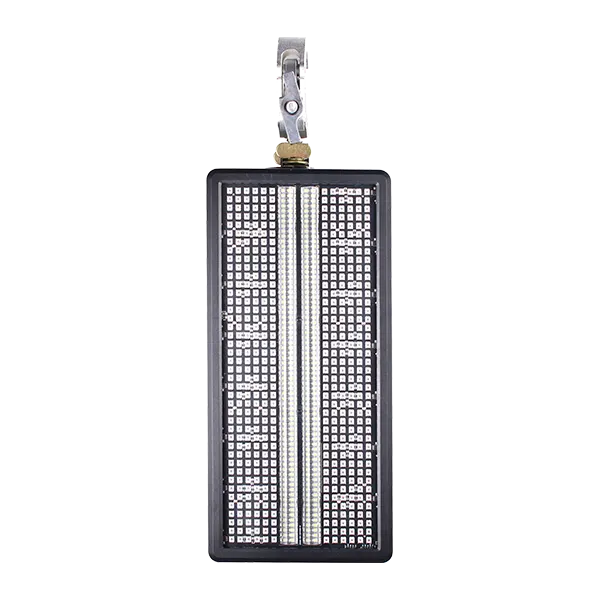

Model Name: PRC-MSL1200TIP
Product Name: Waterproof Moving Head Strobe Light
Technical Specifications
Optics & Light Source
LED Source
● RGB: 504 pcs × 1.5W
● White: 280 pcs × 5W
Beam Angle
● RGB: 120°
● White: 60°
Controllable Segments
● RGB: 14 segments
● White: 28 segments
Electrical & Power
● Rated Power: 1500W
● Peak Power Consumption: 1800W
● Main Voltage: AC100-240V, 50/60Hz
Control & Communication
Control Modes
● Standard DMX Modes: 8CH / 18CH / 25CH / 95CH
● Compact Modes: C 8CH / C 11CH / C 13CH / C 24CH / C 30CH / C 47CH / C 68CH / C 74CH / C 97CH
● Control Protocols: DMX-512, RDM, W-DMX, ART-net, sACN
● RDM Functions: Supports bidirectional communication, remote address setting, channel mode configuration
● Wireless DMX: 2.4 GHz W-DMX™ (Optional)
● Network Communication: Supports LAN networking via switch; supports ART-net/sACN signal decoding and forwarding (with network interface version)

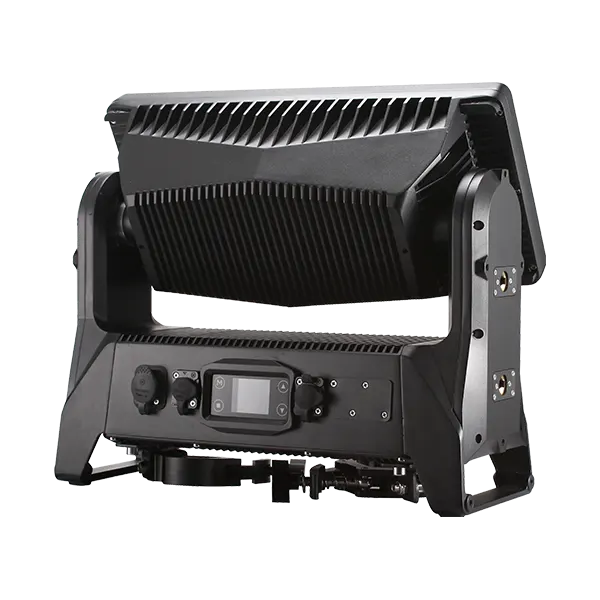

● Display: Graphic LCD with touch-sensitive interactive panel
● Signal Interface: Seetronic IP65 XLR 5-pin / 3-pin (Input/Output)
● Network Interface: Seetronic dual-port with switch interface (Optional)
● Power Interface: Seetronic PowerCON TRUE1 (Input)
Effects & Dimming
● Dimming: 0-100% electronic dimming, supports 4 dimming curves, 5 dimming speeds
Strobe
● Maximum Frequency: 24 Hz
● Strobe Modes: 18 types
● Strobe Duration: Customizable (0-650Ω)
● Built-in Effects: Rich built-in effects library, supports multiple dynamic effects
Structure & Cooling
Cooling System
● Aluminum heatsink with active air cooling
● IP65-rated bidirectional PWM programmable cooling fans
● Temperature Control: Overheat protection
● Operating Temperature: -30°C to 50°C (-86°F to 122°F)
● Operating Position: Any mounting orientation
Installation & Physical Specifications
Mounting

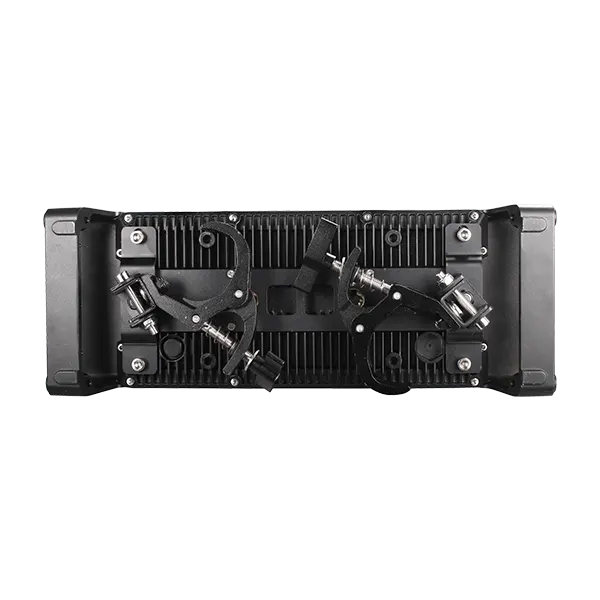

● Omega bracket / Foldable integrated bracket
● Safety cable attachment: Foldable eyelet
● Housing Color: Black (Standard)
● Ingress Protection: IP65
Single Unit Dimensions & Weight
● Carton Packaging: 56 × 42 × 24 cm
● Gross Weight: 16.5 kg
Flight Case Specifications
● Dimensions: (1-in-4) 100 × 47 × 59 cm; (1-in-2) 58 × 49 × 65 cm
● Gross Weight: 1-in-4 — 86 kg; 1-in-2 — 56 kg
● Material: 9mm plywood, black aluminum frame, with handles
Optional Accessories
● Rigid coupler for side-by-side connection
● Wireless DMX module (W-DMX™)
● Network communication module (dual-port with switch interface)
