Powered by an OSRAM or Philips 380W lamp, this moving head delivers a razor-sharp 2.5° beam with a 2.8°–50° linear zoom for stunning aerial effects and wide coverage. Dual gobo wheels (rotating and fixed), an 8-facet rotating prism, and a vibrant color wheel offer limitless creative possibilities.
Built for professionals, it features fast 3-phase motors for silent Pan/Tilt movement, intelligent cooling, and a touch screen display for easy operation.
Perfect For:
Concerts and live events
Nightclubs and large venues
TV studios and corporate productions
Powerful, reliable, and built to impress.

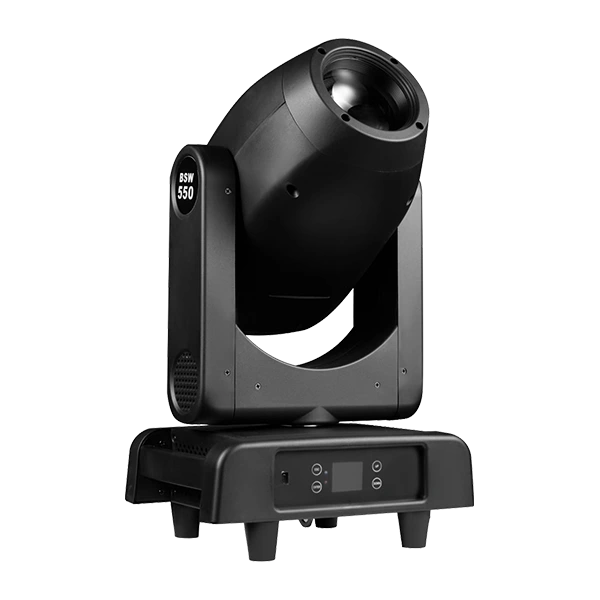

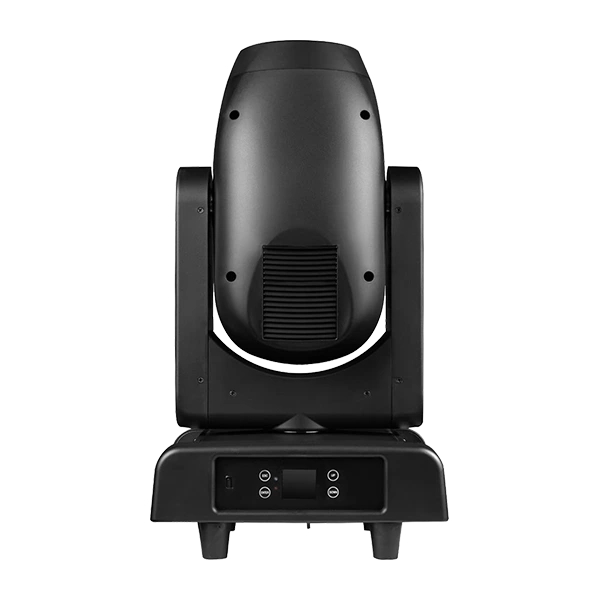

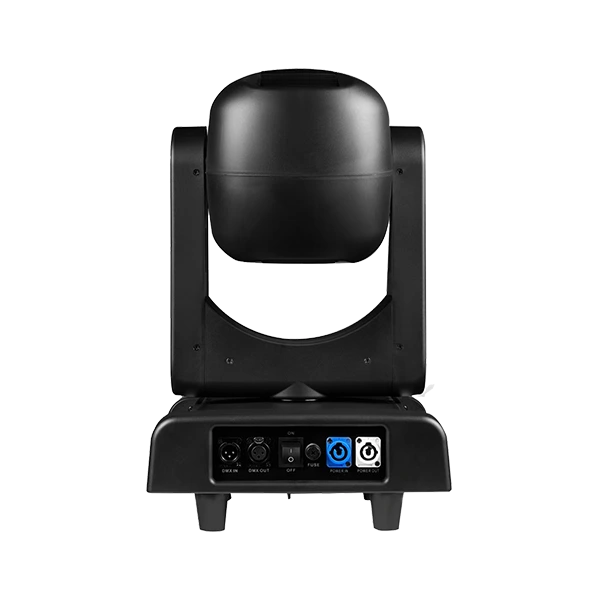

Model Name: PRC-550BSW mini
Product Name: mini Moving Head Beam Spot Wash 3-in-1 Light
Electrical
Input Voltage: AC100–240V, 50/60Hz
Power Consumption: 600W
Light Source
Lamp: OSRAM 371W or Philips 380W
Average Lifespan: 1,500 hours
Color Temperature: 7,800K
Reflector: Integrated lamp-reflector module
Optical System
Lens: High-precision optical lens
Beam Angle: 2.5°
Zoom Range: 2.8°–50° (linear high-speed zoom)
Focus: Linear adjustment
Effects & Features
Dimmer: 0–100% mechanical linear dimming
Strobe: 0–25Hz, high-speed strobe with multiple effects (pulse, asynchronous, synchronous, random speed)
Frost: Independent frost effect for soft-edge, natural light output
Color System
Color Wheel: 10 color filters + open
Gobo System
Rotating Gobo Wheel: 7 indexable, replaceable rotating gobos + open; features self-rotation, water flow, and shaking effects; wheel positionable
Fixed Gobo Wheel: 10 fixed gobos + open (2 gobos feature beam reducer functionality)
Prism
Prism: 1 rotatable 8-facet circular prism (bi-directional rotation with adjustable speed)
Movement
Pan: 540° (3-phase motor)
Tilt: 270° (3-phase motor)
Reset: Electro-optical automatic position correction for both Pan and Tilt
Control
Channels: 16 / 24 CH
Modes: DMX512, Auto Run, Sound-Active, RDM
Display: 16-million-color LCD touch screen with 180° reversible menu
Cooling & Protection
Cooling: Intelligent fan control system
Monitoring: Electronic sensor detection with DMX control monitoring
Physical
Product Dimensions: 31 x 24 x 57 cm
Packaging Dimensions (Flight Case 2-in-1): 74 x 37 x 76 cm
Net Weight: 14.0 kg
Gross Weight (Flight Case 2-in-1): 56.0 kg
