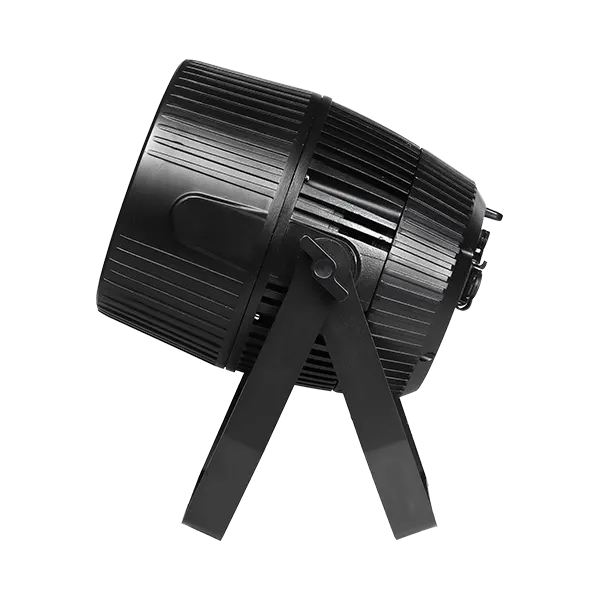

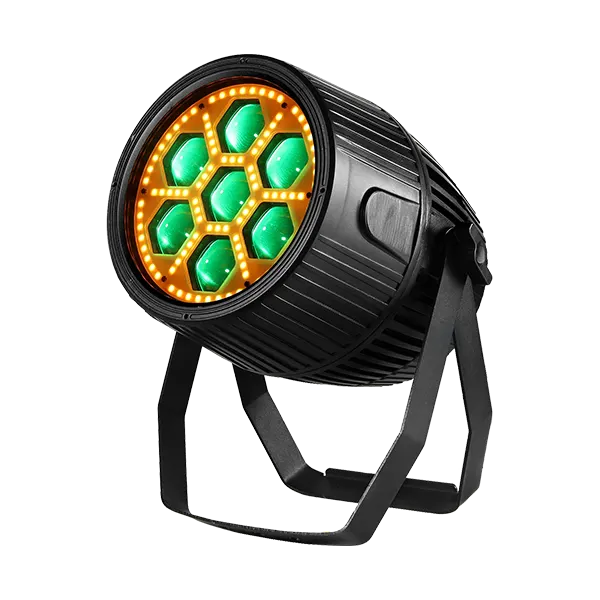

PRC-P740Z – Zoom Halo LED PAR Light
Combining powerful wash effects with stunning halo accents, the PRC-P740Z features 7 x 40W RGBW LEDs for a vibrant central beam and 80 x SMD RGB LEDs for a dynamic outer ring. With a linear zoom range of 6° to 65°, it transitions seamlessly from a narrow spot to a wide wash, offering exceptional versatility for any production.
Individual pixel control enables eye-catching effects and pixel mapping, while the linear dimmer and strobe provide smooth, precise control. Built with fan speed control and overheating protection, this fixture delivers reliable performance in a lightweight 6 kg design.
Perfect for concerts, stages, mobile DJs, clubs, weddings, and corporate events, the PRC-P740Z delivers rich color, versatile zoom, and striking halo effects—all in a compact, easy-to-rig package.
Model Name: PRC-P740Z
Product Name: 7pcs x 40W RGBW 4in1 LED + 80pcs SMD Zoom Halo LED PAR Light
Light Source
● Main: 7 x 40W 4in1 RGBW LEDs
● Halo: 80 x 0.2W SMD 3in1 RGB LEDs
● Power Consumption: 300W
● Lifespan: 50,000 hours
● Cooling: Fan speed control with overheating protection
Color System
● Color Synthesis: RGBW color mixing
● Pixel Control: Individual control of each diode
● Presets: Static and dynamic color macros
Optical System
● Zoom: 6° – 65° (linear zoom)
● Dimmer: Linear 0–100%
● Strobe: Linear strobe effect
Control
● Protocol: DMX512
● Channel Modes: 8 / 15 / 36 channels
● Operation Modes: Master/Slave, Auto Run, Sound-Active

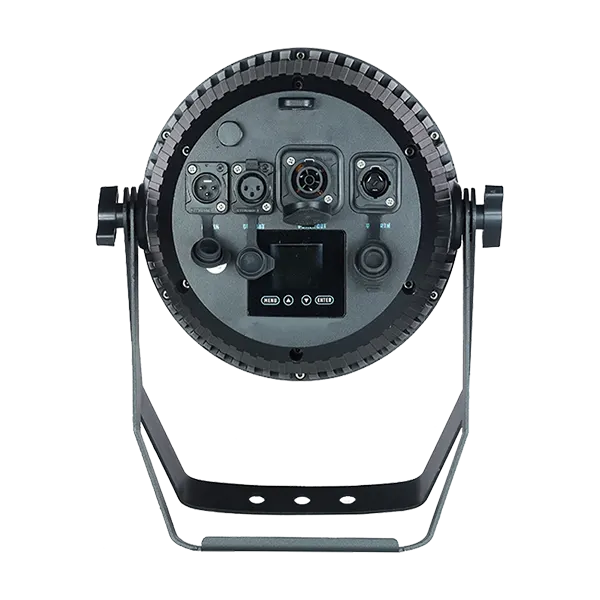

● Connectors: 3-pin XLR In/Out (DMX); PowerCon In/Out (Power)
Physical Specifications
● Dimensions (H x W x D): 405 x 310 x 230 mm
● Net Weight: 6 kg
