PRC-300Z – RGBAL 300W LED Fresnel Spot Light with Automatic Zoom
Engineered for studio-quality lighting, the PRC-300Z combines a 300W RGBAL 5in1 COB LED with a high-resolution Fresnel lens and linear digital zoom ranging from 15° to 50°. The RGBAL color system—featuring red, green, blue, amber, and lime—delivers exceptional color rendering (CRI >90) and a wide color temperature range from 2700K to 12,000K, enabling precise color matching for any production.
The silent fan with liquid tube cooling ensures whisper-quiet operation, making it ideal for noise-sensitive environments. With a linear dimmer offering four curve options, a flicker-free refresh rate up to 25,000 Hz, and strobe effects from 1 to 25 flashes per second, this fixture provides complete creative control.
Perfect for film and television studios, theaters, broadcast studios, and high-end event productions, the PRC-300Z delivers accurate color, smooth dimming, and reliable performance in a compact 10 kg design.
Model Name: PRC-300Z
Product Name: RGBAL – 300W LED Fresnel Spot Light with Automatic Zoom (5in1)
Light Source
● Type: 300W COB LED Module (RGBAL 5in1)
● Lifespan: 50,000 hours
● Power Consumption: 300W
● Cooling: Silent fan with liquid tube cooling system
Color System
● Color Synthesis: Red + Green + Blue + Amber + Lime
● CRI: >90
● Color Temperature: 2700K – 12,000K (15 macros)
● Presets: Macros (virtual color wheel)
Optical System

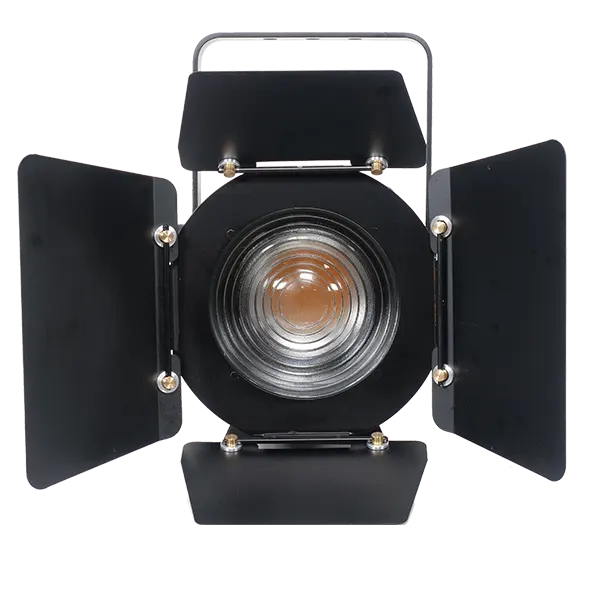

● Lens: High-resolution Fresnel lens
● Zoom: 15° – 50° (linear digital zoom)
● Dimmer: Linear 0–100% with 4 dimmer curves
● Refresh Rate: 500 Hz – 25,000 Hz (linear adjustable)
● Strobe: Linear effect, 1–25 flashes per second
Control
● Protocol: DMX512; RDM
● Channel Modes: 6 / 12 channels
● Operation Modes: Master/Slave, Auto Run, Sound-Active

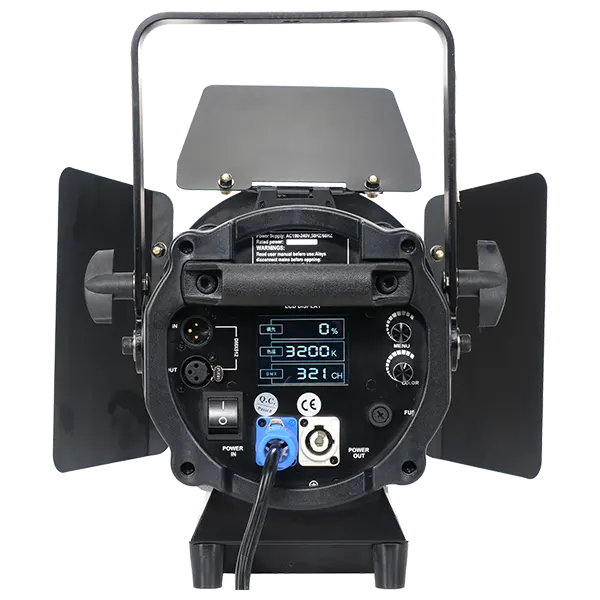

● Connectors: 3-pin and 5-pin XLR In/Out (DMX); PowerCon In/Out (Power)
Physical Specifications
● Dimensions (H x W x D): 275 x 290 x 440 mm
● Net Weight: 10 kg
