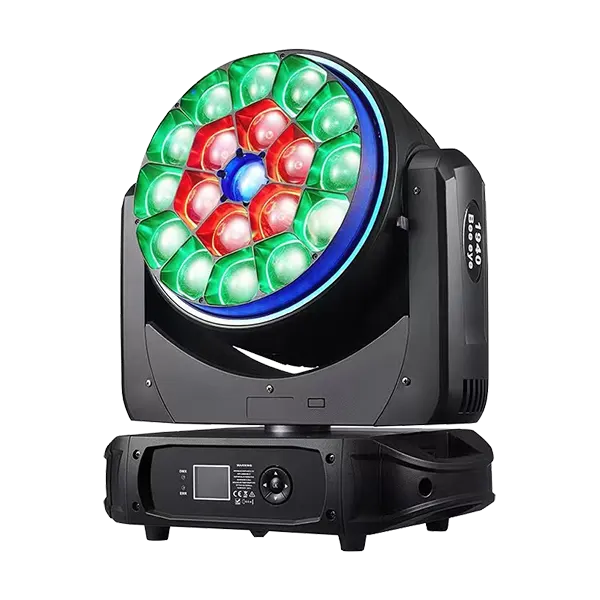

PRC-M1940ZB – Compact Moving Head with Powerful Effects
This fixture combines 19 x 40W RGBW LEDs with a dynamic LED ring, delivering wash, beam, and eye-candy effects in one unit. The zoom ranges from 4° to 60°, offering both intense spot beams and wide washes. Individual pixel control allows for stunning pixel mapping and colorful macro effects.
With 540° pan, 270° tilt, and digital position correction, it moves smoothly and accurately. Multiple control options—DMX, sound-active, auto run—make it easy to integrate into any setup.
Ideal for concerts, nightclubs, live stages, weddings, and corporate events, the PRC-M1940ZB delivers high output, vibrant colors, and reliable performance in a compact 15 kg design. Whether creating dynamic stage lighting, immersive club atmospheres, or elegant event ambience, this fixture adapts effortlessly to any scenario.
● Model Name: PRC-M1940ZB
● LED Moving Head Wash-Beam-FX with LED Ring
● Configuration: 19pcs × 40W RGBW 4in1 OSRAM LED Bee Eyes + LED Ring
Light Source
● Main Module: 19 x 40W 4in1 RGBW LEDs
● LED Ring: 48 x 0.2W RGB LEDs
● Power Consumption: 800W
● Source Lifespan: 50,000 hours
Photometric Data
● Illuminance: RGBW 200,000 Lux @ 1m (6° beam angle)
● Beam Angle: 4° – 60°
Movement & Positioning
● Pan: 540° (8/16-bit)
● Tilt: 270° (8/16-bit)
● Digital positioning correction following external interference
Color System
● Color Synthesis: RGBW color mixing
● Pixel Control: Individual control of each diode (pixel mapping)
● Presets: Graphical and dynamic color macros
● Color Temperature: 2800K – 8000K (linear adjustment); halogen lamp emulation mode
Optical & Effects
● Optical System: Multi-lens optics with optical guides; rotating front lens
● Dimmer: Linear 0–100% with 4 selectable dimmer curves
● Strobe: Adjustable (1–25 flashes per second) + random mode
Control
● Protocol: DMX512
● Channel Modes: 26 / 38 / 102 / 114 channels
● Operation Modes: Master/Slave, Auto Run, Sound-Active

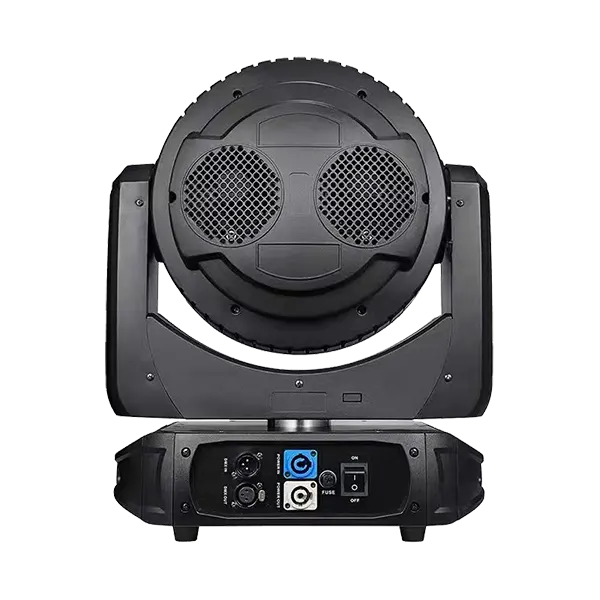

● Connectors: 3-pin XLR In/Out (DMX); PowerCon In/Out (Power)
Physical Specifications
● Dimensions (H x W x D): 445 x 415 x 290 mm
● Net Weight: 15 kg
