Product Description: PRC-MA3 Compact XT
Unleash your creative vision with the PRC-MA3 Compact XT, a powerful and portable lighting control console engineered for professional-grade performance. Packed with 8,192 parameters and housed in a sleek, flight-ready chassis, this console delivers the processing power you need for complex shows without compromising on space or mobility.
Designed for intuitive operation, the Compact XT features two internal foldable multi-touch displays with the option to connect a third, providing ample screen real estate for visualization and programming. Precision control is at your fingertips with 39 rotating RGB-backlit encoders, 15 motorized 60mm faders, and dedicated A/B motorized crossfaders, all complemented by 60 individual playback faders and 16 assignable X-keys for instant cue access.
Connectivity is comprehensive with 6 DMX outputs, 1 DMX input, 3 etherCON ports for network expansion, and 5 USB ports. Built-in MIDI, timecode, and audio inputs allow for seamless synchronization with other performance elements, making it a true hub for multimedia shows.
Use Cases:
The PRC-MA3 Compact XT is the ultimate choice for lighting designers and venues demanding high-end features in a portable format. It is perfectly suited for:
Touring & Live Events: Its compact size and flight case make it ideal for one-night stands and festival touring where space is at a premium.
Theatrical Productions: The intuitive playback controls and motorized faders allow for nuanced busking and precise cue sequencing.
Corporate Events & Houses of Worship: Its professional I/O and reliability ensure flawless execution for presentations, conferences, and modern worship services.
Nightclubs & Installations: The robust build and powerful parameter count handle the most demanding immersive lighting designs night after night.
Experience flagship power in a compact form. The PRC-MA3 Compact XT is where professional control meets ultimate portability.
Product Name: PRC-MA3 Compact XT
Key Features:
● Next-generation console architecture with 8192 parameters in PRC-MA3 mode
● 6 DMX outputs and 1 DMX input (DMX512-A)

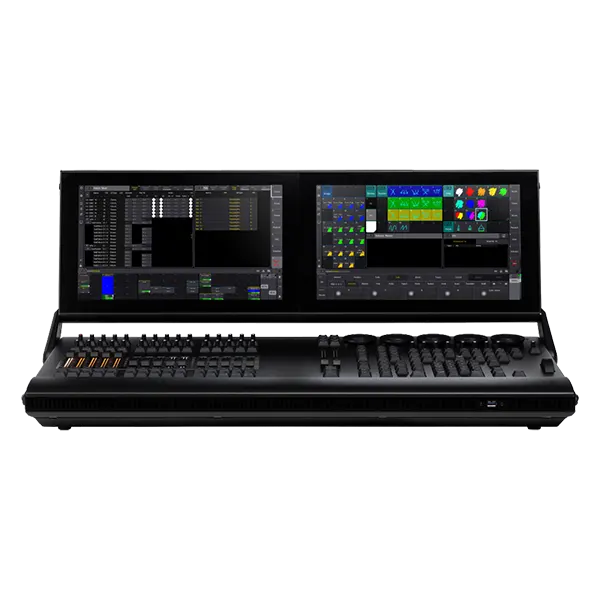

● Dual internal foldable multi-touch displays
● Support for one external multi-touch display

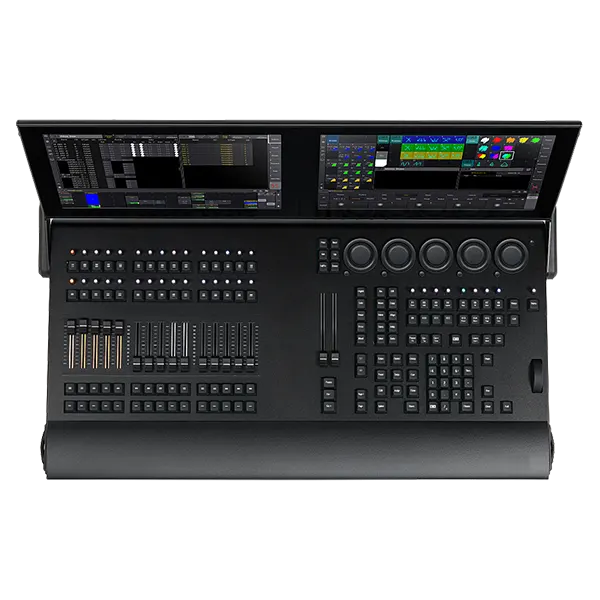

● 39 rotating encoders with RGB backlighting
● 5 dual-function encoders
● 15 RGB backlit motorized 60mm faders
● 60 playback faders with individual control
● 16 assignable X-keys with customizable functions
● 3 etherCON ports for network connectivity
● 5 USB ports for peripheral integration
● Dual 100mm backlit motorized A/B faders
● Individually backlit and dimmable mute buttons (silent operation)

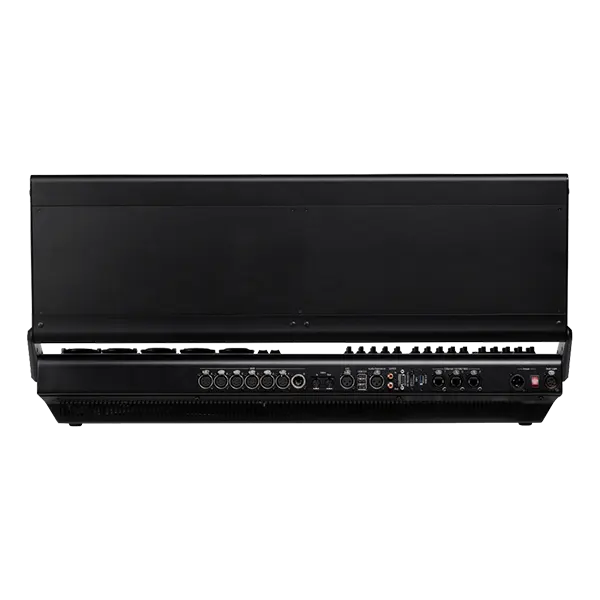

Connectivity:
● 6 × DMX512-A outputs (5-pin female XLR)
● 1 × DMX512-A input (5-pin male XLR)
● 1 × MIDI input (5-pin DIN female)
● 1 × MIDI output (5-pin DIN female)
● 1 × Linear Time Code (LTC) input (3-pin female XLR)
● 1 × Audio input (3-pin female XLR)
● 1 × LED table light connector
Power Specifications:
● Input Voltage: AC 100–240V, 50/60Hz (universal power supply)
Physical Specifications:
● Net Weight: 20 kg (44.1 lbs)
● Gross Weight: 38 kg (83.8 lbs) including flight case
● Console Dimensions: 845 × 429 × 160 mm (33.3 × 16.9 × 6.3 in)

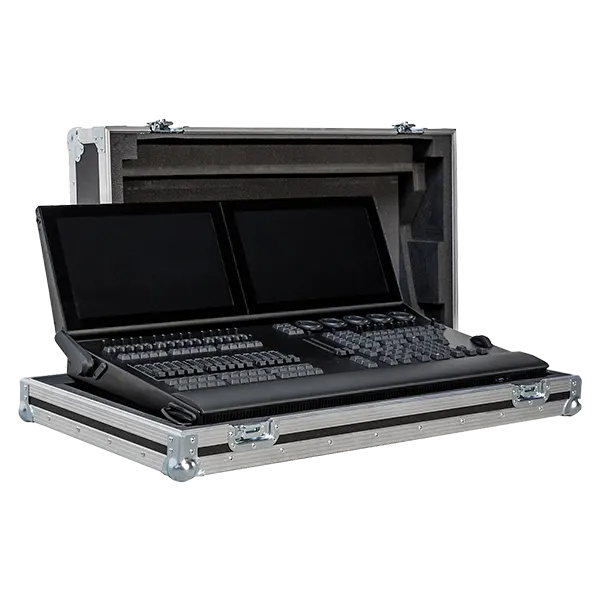

● Flight Case Dimensions: 940 × 600 × 270 mm (37.0 × 23.6 × 10.6 in)
