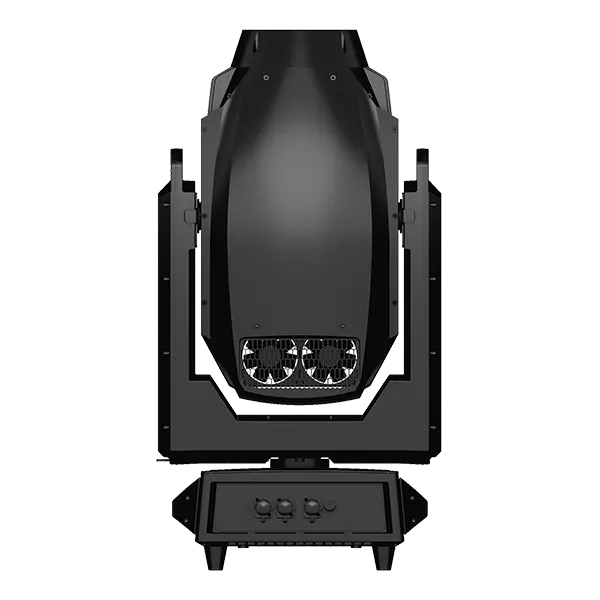

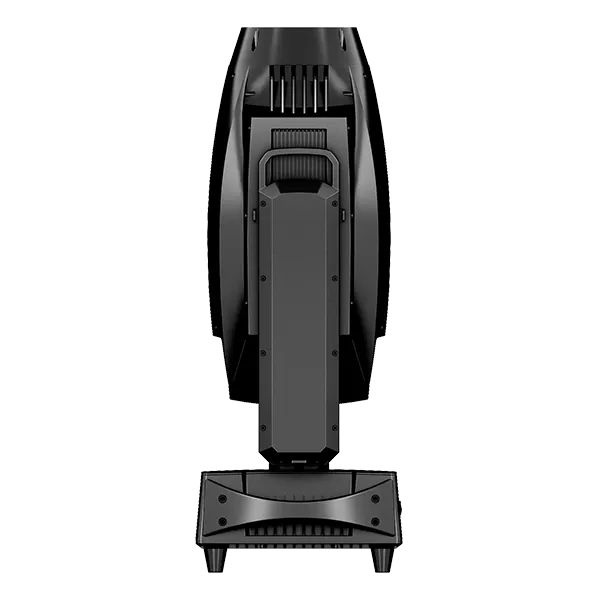

Model Name: LED1700BSW
Professional Stage Moving Head Light – Powerful, Versatile, and Precision-Engineered
Elevate your lighting performance with our high-output 1500W white LED moving head, designed for demanding stage, concert, and event productions. With a CRI of 70 and adjustable color temperature (2500K–6700K), it delivers crisp, vibrant illumination, perfect for live shows, theaters, and architectural lighting.
Key Features:
✔ Ultra-Precise Movement – Smooth 540° PAN and 270° TILT for dynamic, fluid motion.
✔ Advanced Color & Gobo Control – CMY mixing, a color wheel, two rotating gobo wheels (6 filters each), and an animation wheel for stunning effects.
✔ Crystal-Clear Optics – 4-face & 8-face rotating prisms, frost filters, and a 5°–50° adjustable beam for versatile projection.
✔ Professional Control – DMX 512 & RDM compatibility with multiple channel modes for seamless integration.
✔ Built for Durability – IP65-rated housing, intelligent fan control, and a built-in battery for reliable operation in any environment.
Ideal for:
Concerts & Festivals – Command the stage with sharp gobos, vibrant colors, and rapid movements.
Theatrical Productions – Achieve precise lighting control with smooth dimming and CTO filters.
Corporate Events & Broadcast – Enhance visuals with high CRI and adjustable white light.
Powerful, adaptable, and engineered for professionals—this moving head light is your ultimate creative tool. 1700W power | 35 kg | DMX-controlled – Unleash brilliance.
Model Name: LED1700BSW
— Light Source: 1500W white LED;
— Filter CRI: 70;
— Color Temperature: 6000K;
— Beam Opening Angle: 5°- 50°;
— Control: DMX 512, RDM;
— Number of DMX Channels: 3 operating modes with different number of channels;
— Smooth and precise PAN movement: 540°;
— Smooth and precise TILT movement: 270°;
— The presence of a CMY mixing system;
— Availability of Filters: CTO, CRI;
— SRT Color Temperature (adjustable in the range): 2500 - 6700 K;
— Color wheel with color filters;
— Linear Electronic Dimmer: 0 - 100%;
— Two Rotating Gobo Wheels, with six filters each;
— One animation wheel;
— Tetrahedral Frame Module: four directions of movement with individual control, rotation of the module by 90°;
— Gobo Wheel: two rotating gobo wheels;
— Animation Effects Wheel;
— Frost: 2 independent frost filters, superimposed, both with linear adjustment;
— Prism: two prisms: a 4-face rotating prism and a rotating 8-face gradient prism;
— Fast electric diaphragm with linear adjustment;
— Built-in battery;
— Intelligent fan control;
— 3-pin XLR connectors (input and output);
— Control unit: LCD display with navigation buttons;
— Power Consumption: 1700W;
— Weight: 35 kg;
— Degree of Protection: IP65
