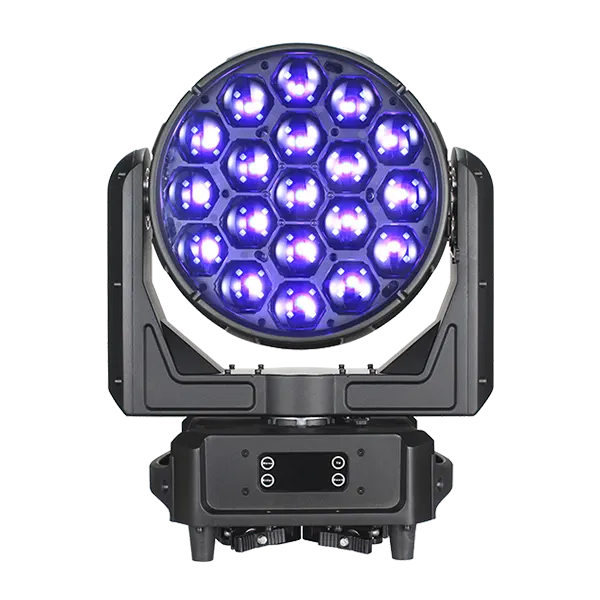

Professional Stage & Architectural LED Moving Head Light
Elevate your lighting experience with our high-performance LED moving head, designed for versatility and brilliance. Featuring 19×60W RGBL 4-in-1 LEDs + 72×0.5W RGB Spark LEDs, it delivers vibrant colors (2,000K–8,000K), ultra-smooth dimming (0–100%), and stunning effects with 4.5°–60° zoom. The 540° pan / 210° tilt movement, powered by precision 3-phase motors, ensures flawless, silent operation.
With DMX512, RDM, Art-Net/sACN, and sound control, it adapts to any setup. The IP65 waterproof rating and rugged die-cast aluminum housing make it ideal for concerts, theaters, TV studios, architectural lighting, and outdoor events. Enjoy 50,000 hours of life, low-noise cooling, and effortless maintenance.
Powerful, reliable, and built to impress—transform any space into a visual masterpiece.
Applications: Live stages, worship venues, trade shows, hotels, landscape lighting, and more.
Input Voltage: AC 90–240V, 50/60Hz
Max. Power Consumption: 1,500W
Light Source:

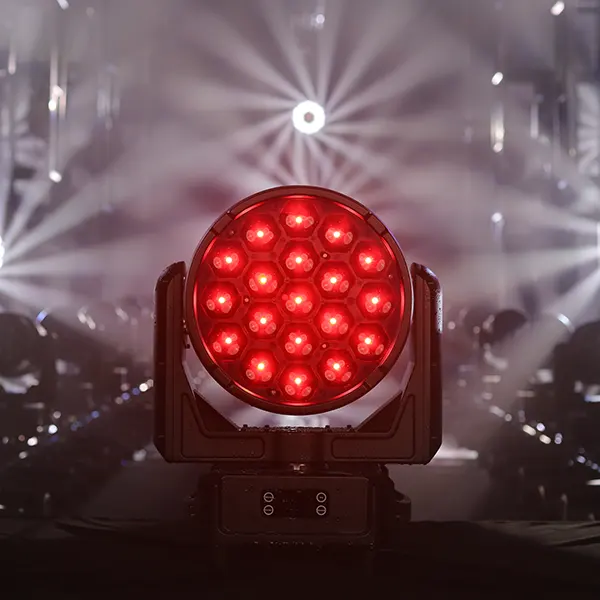

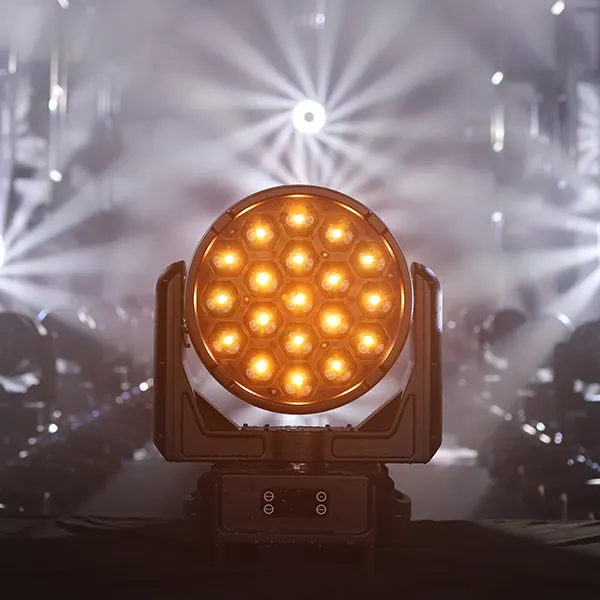

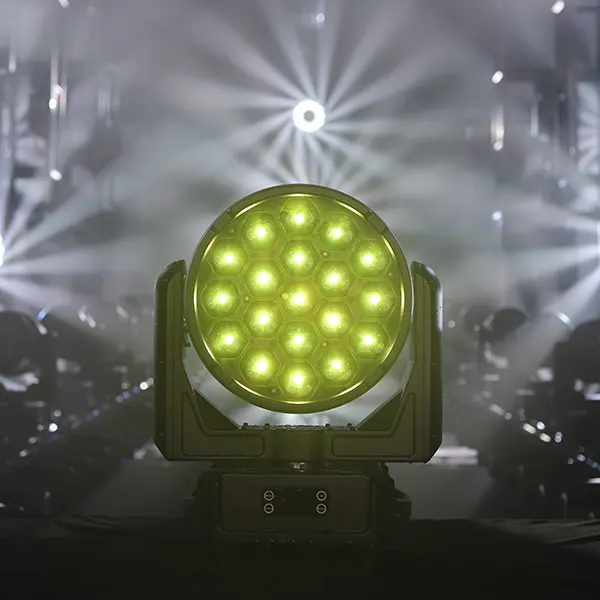

19 × 60W RGBL 4-in-1 LEDs (High-Output)
72 × 0.5W RGB 3-in-1 LEDs (Spark Effect)
Color Temperature Range: 2,000K – 8,000K (Tunable)
Color Rendering Index (CRI): ≥80
Zoom Range: 4.5° – 60° (Motorized)
Color Mixing: Full RGBL blending with pixel-level control
Effects:

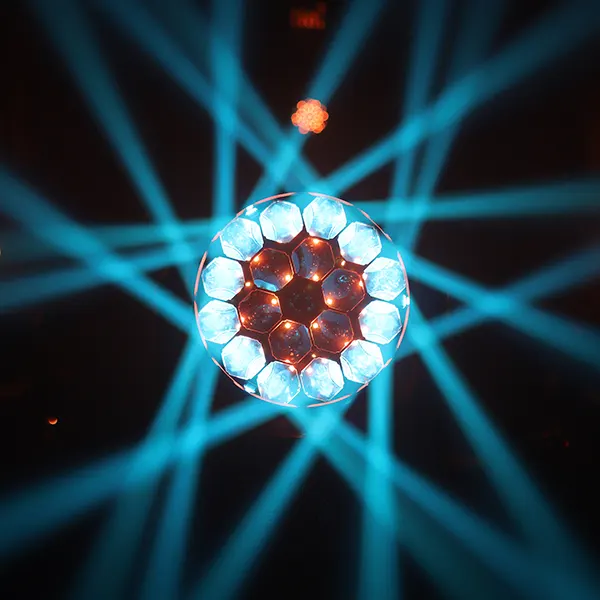

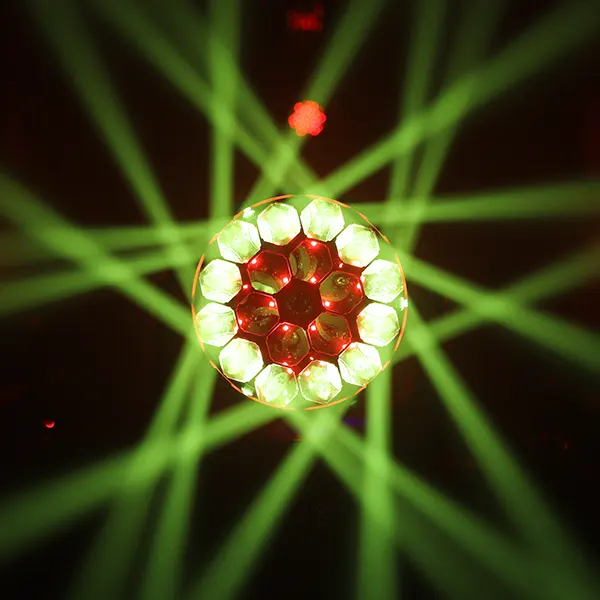

RGB 3-in-1 Spark LED lens effects
Pre-programmed color macros & dynamic patterns
Dimmer: 0–100% linear dimming
Strobe: Electronic strobe (1–25 FPS, adjustable)
Pan/Tilt:
Pan: 540° (3-phase high-precision motor)
Tilt: 210° (3-phase high-precision motor)
8/16Bit resolution for smooth motion
Positioning System:
Intelligent photoelectric reset correction
Auto-return on misoperation
Horizontal/vertical locking mechanism
Control Modes:
DMX512 (26/98/238/309CH selectable)
RDM (Remote Device Management)
Standalone (Auto/Sound-Active/Master-Slave)
Network Protocols: Art-Net, sACN (via Ethernet)

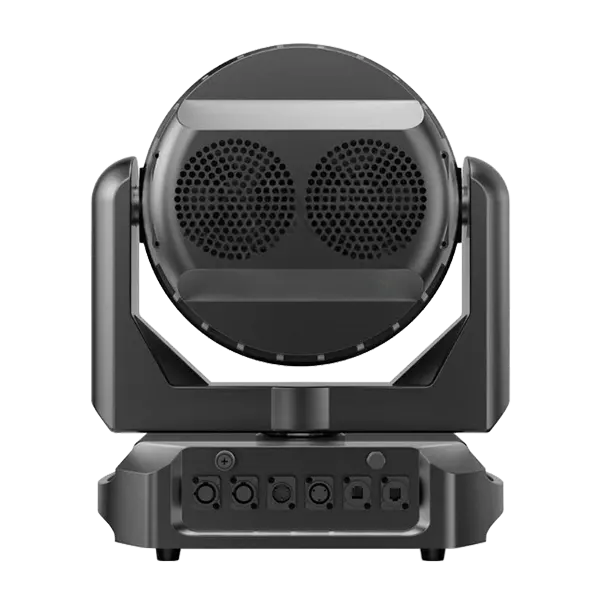

Connectors:
IP65-rated 5-pin XLR (DMX In/Out)
IP65-rated RJ45 (Ethernet In/Out)
Locking power input (IP65)
Display: 180° reversible color LCD with tactile controls
Cooling System: CFD-optimized airflow design
Fan Performance: Ultra-low noise, high-efficiency cooling

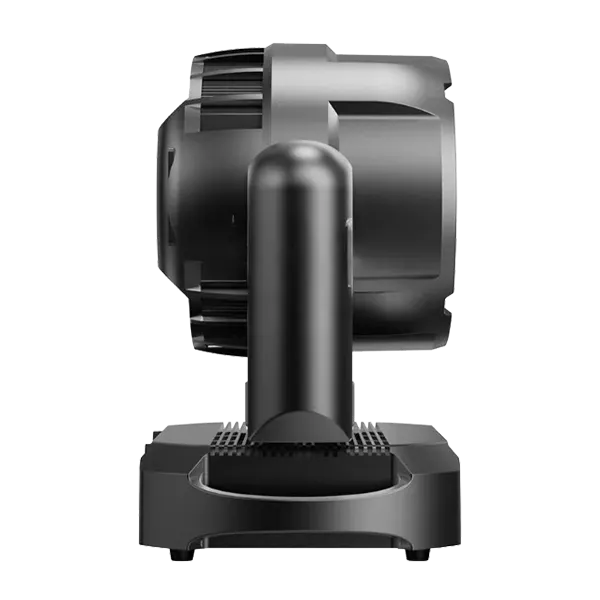

Housing: High-strength die-cast aluminum (heat-dissipating design)
Mounting: Supports inverted & side-hanging installation
Weight:
Net: 23kg | Gross: 26kg
Dimensions:
Fixture: 430 × 280 × 514mm (L×W×H)
Packaging: 500 × 350 × 695mm
IP Rating: IP65 (Dustproof & waterproof)
Ideal for:

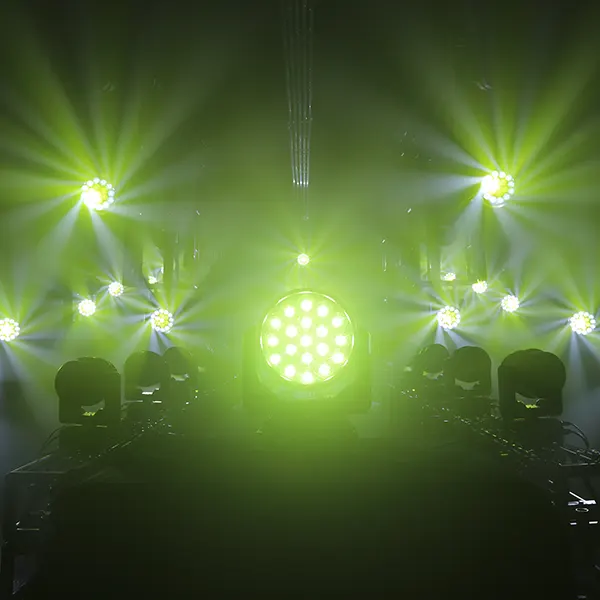

Live concerts, theaters, TV/studio productions
Architectural lighting, landscape projects
Houses of worship, trade shows, hotel venues
Fountain displays & large-scale event lighting
