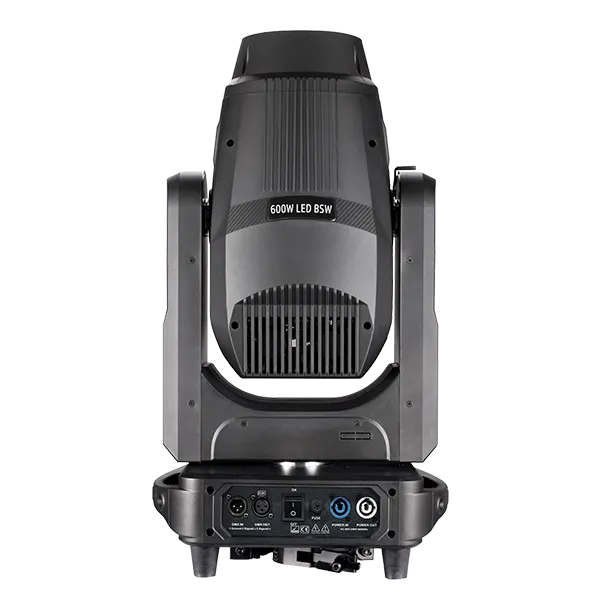

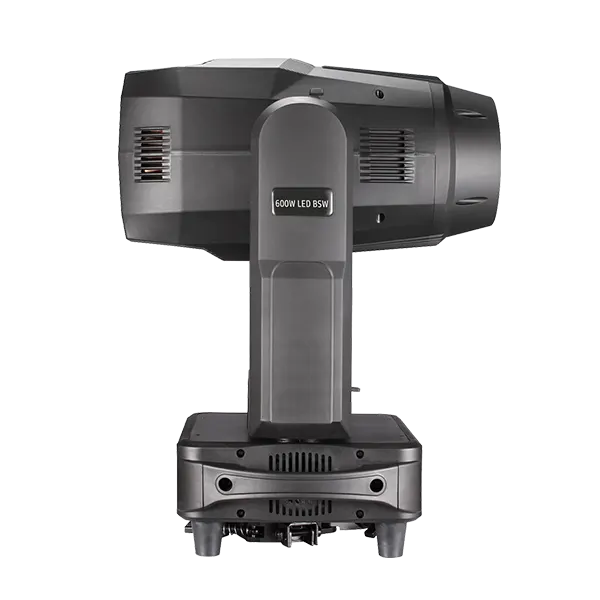

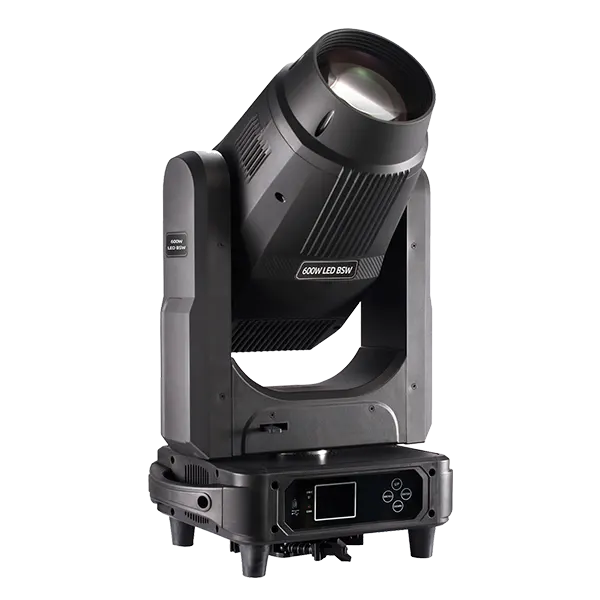

Professional 700W LED Moving Head Light – Powerful, Versatile & Stunning
Elevate your stage productions and events with our high-performance 700W LED Moving Head Light, designed for exceptional brightness, precision, and versatility. Featuring a 600W LED module with a 20,000-hour lifespan, this fixture delivers brilliant, energy-efficient illumination while reducing maintenance costs.
Key Features:
✔ 540° Pan / 270° Tilt with 16-bit precision for ultra-smooth movements
✔ Linear CMY + CTO mixing & 8-color wheel for vibrant, customizable hues
✔ 7 fixed + 7 rotating gobos, 8-facet prism, and high-speed strobe (0-30Hz) for dynamic effects
✔ 3.5°-50° zoom & 4-50m focus for perfect beam control
✔ 2.8" touchscreen with RDM-enabled DMX512 control for easy setup
Ideal for:
Concerts & Festivals – Command the stage with intense beams and fast movements
Theaters & Studios – Achieve flawless lighting with smooth dimming and frost effects
Nightclubs & Events – Stun crowds with vibrant colors, gobos, and prism rotations
Architectural Lighting – Long-throw projection with crisp, adjustable focus
Robust & Portable:
Weighing 23kg, it’s built for touring yet fits flight cases (2pcs/86kg). DMX/RDM-ready for seamless integration.
Light up your creativity—wherever the stage takes you!
Technical Specifications
Electrical Parameters:
Input Voltage: AC 90-240V, 50/60Hz (Auto-switching)
Power Consumption: 700W (Rated)
Light Source: 600W High-output LED Module
Source Lifespan: 20,000 hours (L70)
Optical System:
Zoom Range: 3.5°-50° (Motorized Continuous Zoom)
Focus Range: 4m-50m (Linear Adjustment)
Frost Effect: Independent frost filter with smooth light diffusion
Dimming: 0-100% linear dimming
Strobe Effect: 0-30Hz adjustable high-speed strobe
Color System:
Color Wheel: 8-position (plus open)
CMY Mixing: Full linear CMY+CTO color mixing system
Color Temperature Correction: Integrated CTO system
Gobo System:
Fixed Gobos: 7 steel gobos + open + effect gobo
Rotating Gobos: 7 glass gobos + open (bi-directional rotation)
Gobo Rotation: Independent clockwise/counterclockwise control
Prism System:
8-facet prism with bi-directional rotation
6-facet prism with bi-directional rotation
Movement System:
Pan: 540° (16-bit precision)
Tilt: 270° (16-bit precision)
Electronic Error Correction: Advanced position calibration
Control System:
DMX Channels: 24/26 channel modes
Protocol: DMX512 with RDM functionality
Addressing: Digital dial addressing
Firmware: Field-upgradable via software
Display: 2.8" reversible touchscreen + physical controls (180° rotatable display)
Operational Modes:
DMX Control
Master/Slave Synchronization
Self-Running Programs
Controller Reset Function
Physical Specifications:
Dimensions: 380 × 270 × 670 mm (W×D×H)
Net Weight: 23 kg
Shipping Weight:
Carton: 27 kg (750 × 360 × 470 mm)
Flight Case: 86 kg/2 units (1010 × 480 × 790 mm)
