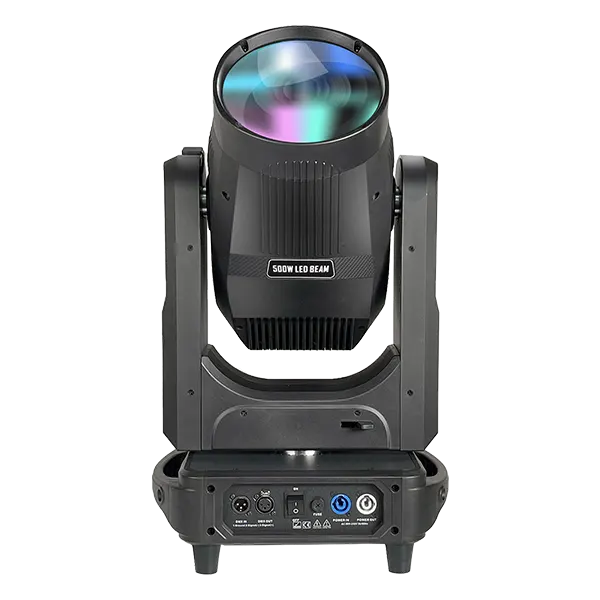

Powerful 500W LED Moving Head Light – Stunning Versatility & Brilliant Performance
Elevate your stage, event, or production with our 500W LED moving head light, delivering vibrant 12 colors, 15 fixed gobos, and 8 prism effects for breathtaking visuals. With 50,000 hours of lifespan and 90V-240V wide voltage input, it ensures reliable, long-lasting performance anywhere.
Enjoy 540° pan / 280° tilt (16-bit precision) and ultra-fast strobe effects, controlled via DMX512, master/slave, or auto modes. The 2.8" touch screen (180° reversible) offers intuitive operation, while PowerCON & XLR connectors ensure seamless integration.
Built for professionals, it features IP20 protection, overheat safety, and comes in a compact yet robust design (21kg). Perfect for concerts, theaters, and dynamic shows—unleash creativity with stunning light!
Available in carton (24.8kg) or flight case (2-in-1, 82.5kg) for secure transport.
Technical Specifications
Electrical Parameters
Input Voltage: AC 90-240V, 50/60Hz (Auto-Switching)
Power Consumption: 500W LED
Protection: Overheat protection, IP20 rated
Optical System
Light Source: High-output 500W LED (50,000-hour lifespan)
Color: 12 selectable colors + open (full spectrum)
Frost Effect: Independent frost + rainbow effect (soft, natural light diffusion)
Gobo System: 15 fixed gobos + open position
Prism System: 8 faceted prisms, 8+8+8 prism combinations (independently rotatable forward/backward)
Dimming: 0-100% smooth dimming
Strobe: Ultra-fast strobe effect
Movement & Control
Pan/Tilt: 540° (pan) / 280° (tilt), 16-bit precision scanning
Auto-Return: Position reset function
Control & Connectivity
DMX Channels: 16CH
Control Modes: DMX512, Auto, Master/Slave, RDM
Signal Connectors: 3-pin XLR (in/out)
Power Connectors: PowerCON in/out
User Interface
Display: 2.8" touchscreen (180° reversible)
Physical Dimensions
Unit Dimensions (L×W×H): 380 × 270 × 645 mm
Net Weight: 21 kg
Packaging Options
Standard Carton
Dimensions: 750 × 360 × 470 mm
Gross Weight: 24.8 kg
Flight Case (2-in-1)
Dimensions: 1010 × 480 × 790 mm
Gross Weight: 82.5 kg
Note: All specifications subject to technical enhancements without prior notice.
